Compliant mechanism collection

M2D2 Lab, Indian Institute of Science (IISc)

Model No. 22

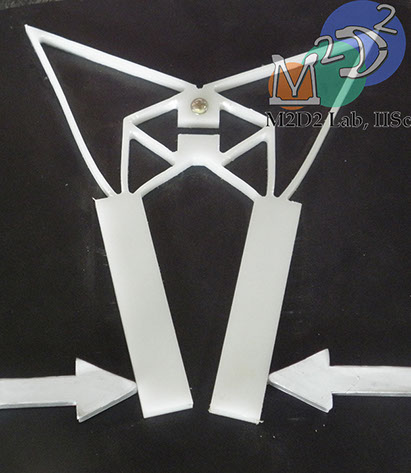

This is a dual-purpose compliant mechanism in which either the handles can be moved with only slight motion of the blocks in the middle on the right; or bringing the handles together creates a large force on an object placed between the blocks on the right in the middle. Thus, it is a Displacement-amplifying  Compliant Mechanism (DaCM) and a Force-amplifying Compliant Mechanism (FaCM).
