Model No. 41

Back to home page

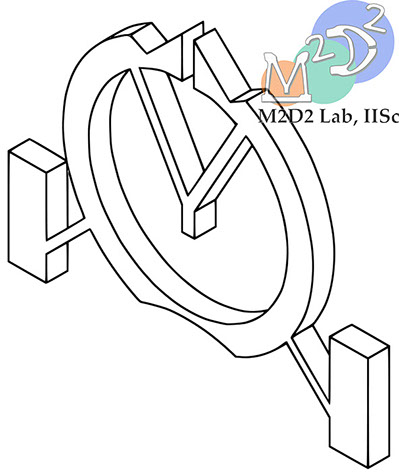

This is a compliant gripper designed using curved segments. When the narrowed portion at the bottom is pressed down, the gap in the gripper jaws reduces.
